The Lightest Full-Power Mountain Bike Ever

Moterra SL is the first 150mm trail bike to pack 85Nm of torque, 600W+ of peak output, and 601Wh of power into a machine weighing as little as 19.7kg /43.4lbs. Full-power fun meets lightweight agility – it’s in a class of its own. *eMTB with drive unit capable of at least 85Nm of torque and battery capacity of at least 600Wh.

Where it thrives

Fast, flowy, trails; technical climbs; challenging descents

What it's built for

High-speed flow; fast, technical ripping; having a blast

Highlights

Light and durable, full carbon, 150mm travel FlexPivot frame with Proportional Response suspension kinematics
Top-of-the-line Fox Factory suspension – 160mm Factory Float 36 fork & Factory Float X rear shock
Light and tough, DT Swiss XM 1700 Spline, tubeless-ready all-mountain wheelset
SRAM’s penultimate e-MTB group - XO AXS wireless 12-speed shifting, plus e*thirteen Race Carbon cranks & Magura MT7 hydraulic disc brakes
Cannondale’s DownLow dropper post & Hollowgram SAVE vibration-reducing carbon handlebar
Cannondale-tuned Shimano EP801 motor & custom, high-energy-density 601Wh internal battery

Frame & Suspension
Platform	Moterra SL
Model Name	Moterra SL 1
Model Code	C65264U
Frame	Series 1 Carbon, 150mm travel, FlexPivot, Proportional Response, internal battery, 29” FlipChip
Fork	Fox Float Factory 36, 160mm, Grip2 Damper, Kashima coat, Kabolt axle
Rear Shock	Fox Float X Factory, 2-pos adj, EVOL LV, 210x55mm
Headset	Acros Adjustable Angle (±1.2°)

E-System
Drive Unit	Shimano EP801, 85Nm, Cannondale Custom Tuned
Battery	Custom 601Wh internal battery
Charger	Custom 4A
Display	Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible

Drivetrain
Rear Derailleur	SRAM XO Eagle AXS, T-Type
Shifters	SRAM AXS T-Type POD Controller
Chain	SRAM XO Eagle, T-Type, Flattop
Crank	ethirteen espec Plus, 165mm, 34T
Rear Cogs	SRAM XO Eagle, 10-52, T-Type

Brakes
Brakes	SRAM Code Silver Stealth
Rotors	200mm HS2 rotors
Brake Levers	SRAM Code Silver Stealth

Wheels & Tires
Rims	DT Swiss XM 1700 Spline, 30mm inner width, TC tubeless ready
Spokes	DT Swiss Competition, straight pull
Front Hub	DT Swiss 350, 15x110mm
Rear Hub	DT Swiss 350 Ratchet System 36 SL, 12x148mm
Wheel Size	29"
Tire Size	2.5"
Front Tire	Maxxis DHF, 29x2.5", 3C, EXO+, tubeless ready
Rear Tire	Maxxis Dissector, 27.5x2.4", 3C, EXO+, tubeless ready

Components
Handlebar	HollowGram SAVE riser, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Stem	Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
Grips	Cannondale TaperRidge
Saddle	Fizik Terra Ridon X3, 145mm, Wingflex, K:ium Mobius rail
Seatpost	Cannondale DownLow Dropper, 31.6, 150mm (S), 170mm (M–XL)

Connectivity
Wheel Sensor	Cannondale Wheel Sensor

Cannondale e-bikes

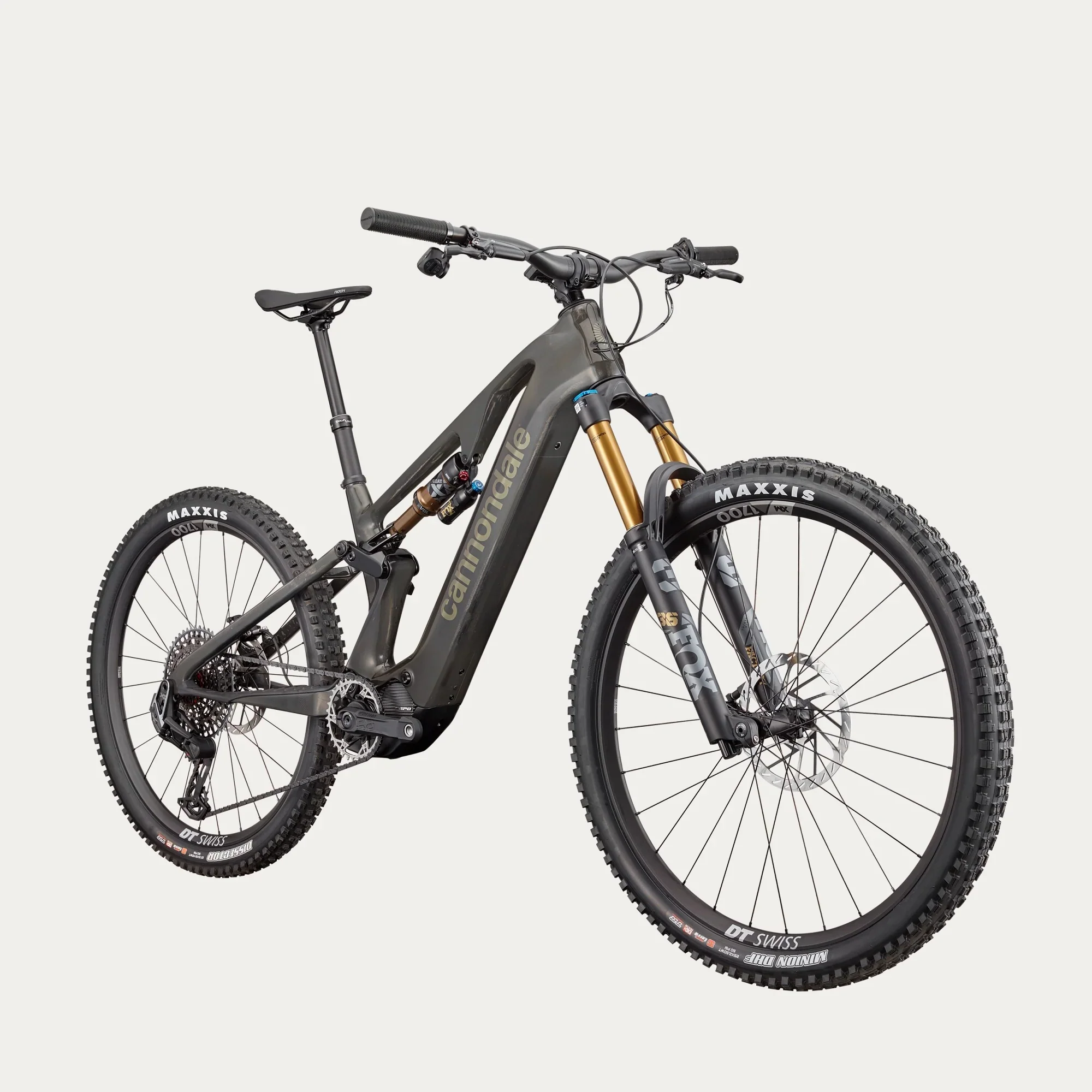

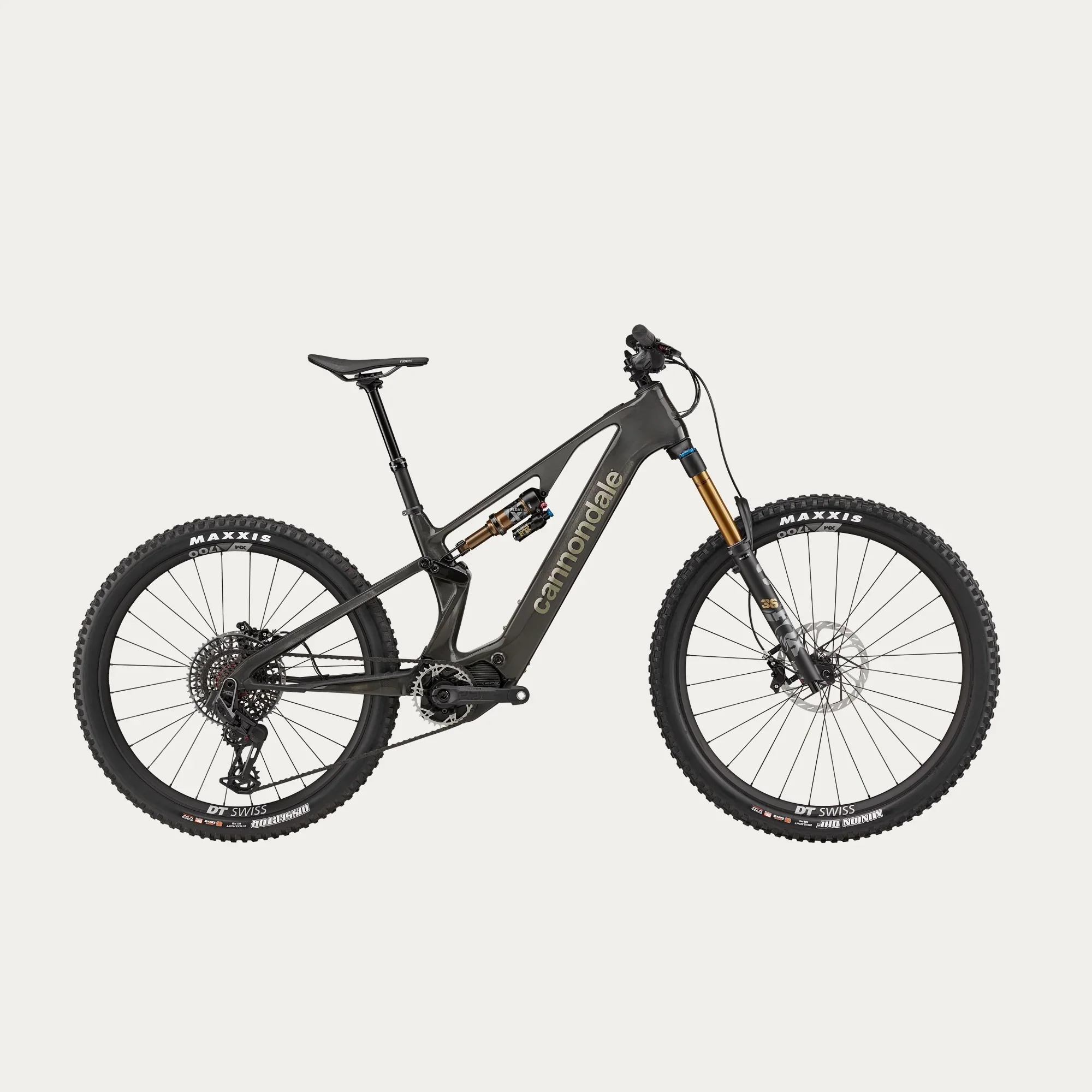

Cannondale Moterra SL 1 E-MTB Complete - Raw
