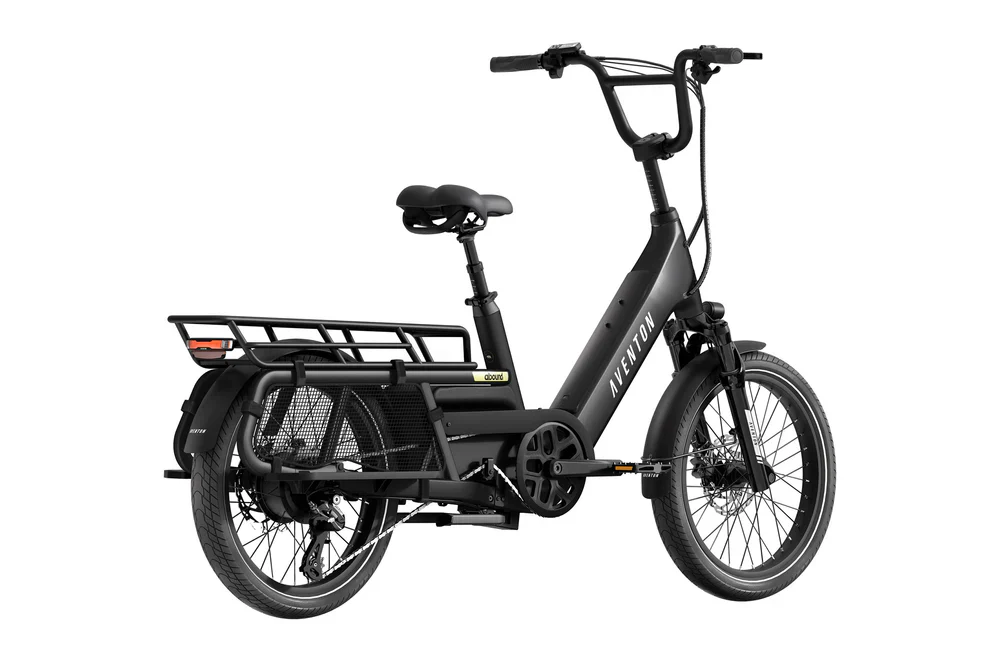

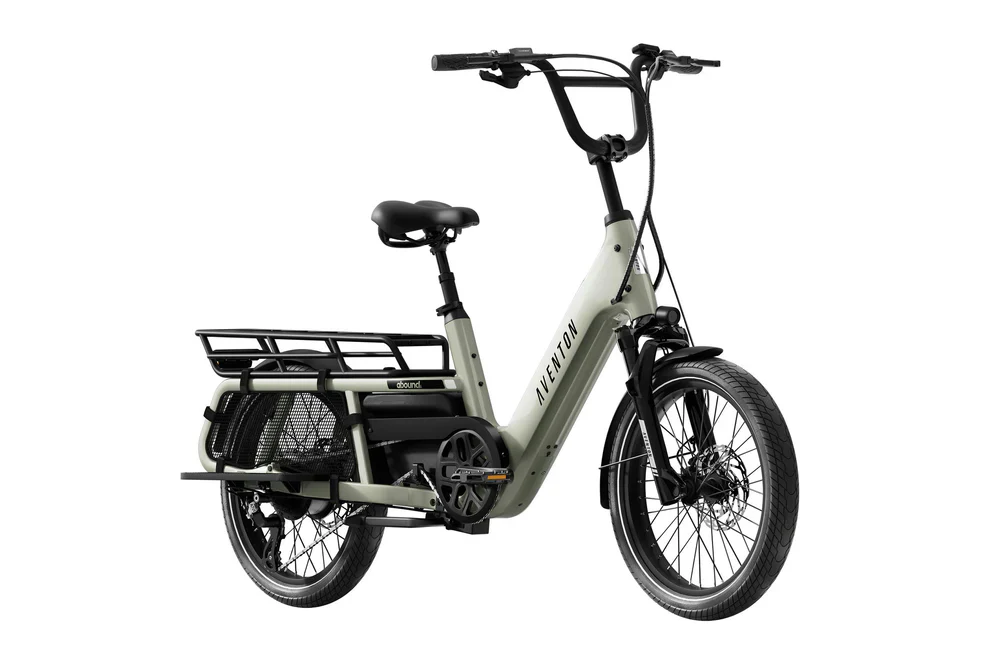

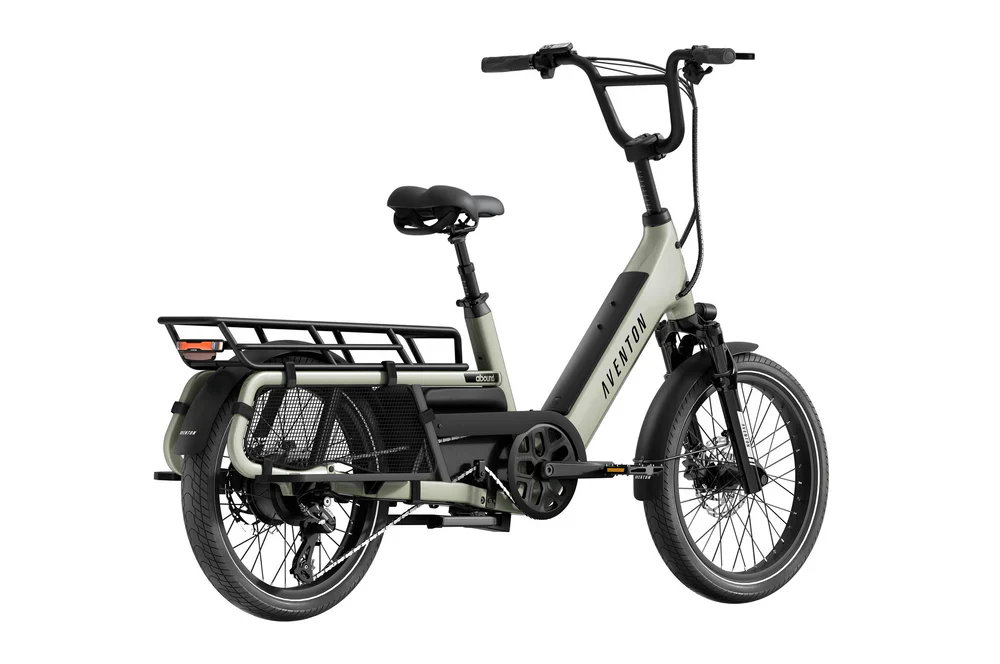

The Abound LR is the ultimate cargo e-bike, designed to handle heavy loads while keeping comfort and control at the forefront
With a powerful motor, a sturdy frame, and an extended rear rack, this bike is ready for anything – whether it’s a grocery run, a family outing, or hauling gear for your next adventure.

Key Features for 2025
Aventon Control Unit (ACU) with 4G and GPS connectivity, suspension seatpost and front suspension, and a spacious rear rack.

Built for Big Loads and Bigger Adventures
Meet the new Abound LR: a dependable and high-performing e-bike created to simplify everyday transportation. Whether you’re heading to work, running errands, or simply out for a ride, the Abound LR offers comfort, versatility, and dependable power.

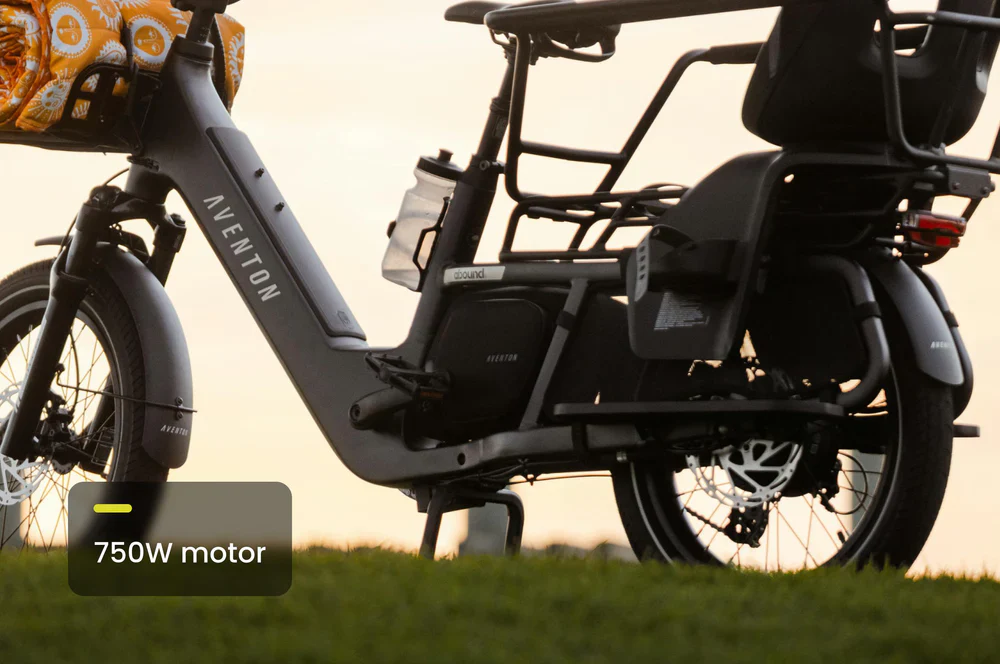

Equipped with a robust 750W motor, the Abound LR delivers
32 KPH top speed, 80Nm of motor torque and 1188W peak power, and up to 97 KMS on a single charge. It’s designed to carry cargo or passengers with ease, handle different terrains, and maintain stable, controlled performance.

Abound LR vs. Abound SR: Which One is Right for You?
Both models support up to 200 KG of total payload, but the LR includes a rear rack that’s 18 cm longer than the SR, making it ideal for larger loads or two passengers. The LR also weighs 3.6 kg more. Choose the LR if you need extra cargo space; go with the SR if you prefer a more compact, easier-to-store option.

Ready for Cargo and Passengers
Built to carry serious weight, the Abound LR’s rear rack supports up to 64 KG, and the total payload capacity is 200 KG. Whether it’s groceries, equipment, or an extra passenger, this bike can manage it all while staying stable and powerful. A lockable storage bag with a three-digit combination provides secure on-the-go storage for your valuables.

Enhanced Security with the Aventon Control Unit (ACU)

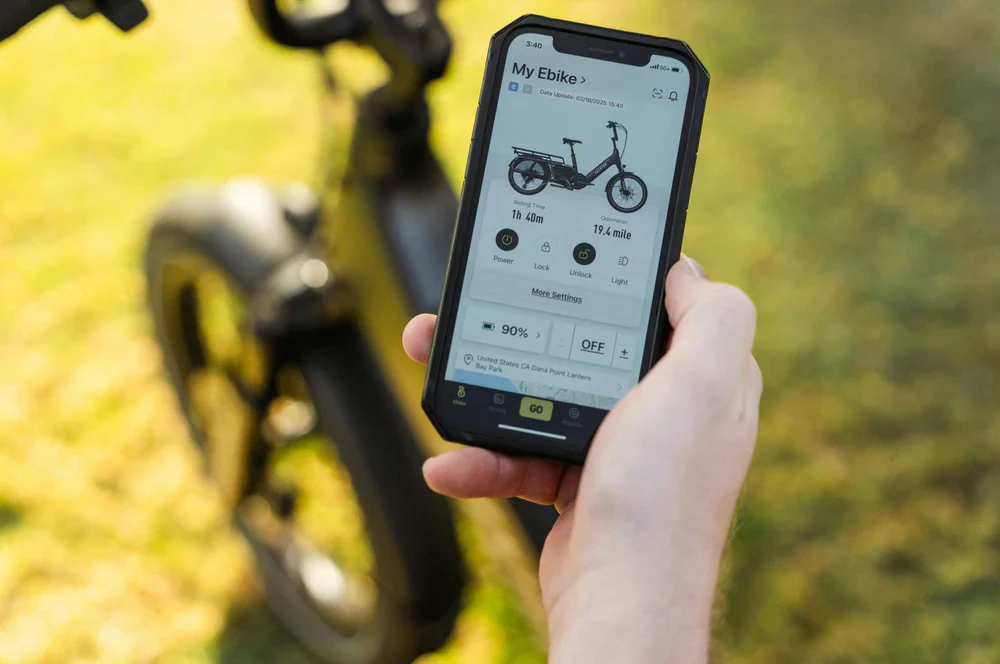

The Abound LR comes equipped with the next-gen ACU, giving riders advanced safety and connectivity. With GPS tracking, 4G support, remote locking, and geofencing capabilities, you can monitor and protect your bike anytime, anywhere. Additional features include passcode protection, an integrated alarm, and an e-lock kickstand to prevent unauthorized movement even when the bike is powered off. Through the Aventon app, you can check battery status, view location, and fine-tune motor settings for a personalized experience.

Your Comfort and Safety, a Priority
With a gravity-cast frame, front suspension, suspension seatpost, and adjustable quill stem, the Abound LR ensures a smooth and confident ride across any terrain. The suspension system minimizes road vibrations and fatigue over longer trips. Ergonomically positioned handlebars and a step-through frame make it accessible and rider-friendly, while bright LED lights boost visibility in any condition. Responsive hydraulic disc brakes deliver reliable stopping power, and the onboard LCD display keeps your ride data visible and accessible.

Effortless Riding, Customised to You
The Abound LR offers adjustable assist levels through Aventon’s Ride Tune system, allowing you to tailor the balance of power and efficiency to suit your route. Whether climbing hills or cruising city streets, the bike maintains steady, smooth acceleration.

Experience the Abound LR Difference
Combining powerful performance with practical features, the Abound LR is ideal for riders who value reliability and ease of use. Whether it’s a weekday commute or a weekend getaway, this electric cargo bike makes every ride seamless, comfortable, and stress-free.

Specs and Features

AVENTON ABOUND LR
TOP SPEED	32 kph
MAX. RANGE	97 km
MOTOR	Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
MOTOR TORQUE	80Nm
THROTTLE	Aventon LH Handlebar Mounted
BATTERY	Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
WEIGHT	39.92 kg
RIDER WEIGHT	200 kg
RIDER HEIGHT	4'11" - 6'3"
WATER RESISTANCE	IPX6
TYRES	20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls
BRAKES	Front: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire Rear: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
CHARGER	36V Output: 42V/ 4A
SAFETY CERTIFICATIONS	UL 2271 Battery | UL and TUV Safety Certified UL 2849
DISPLAY	Aventon BC147
PEDAL ASSIST	3 Levels (with Ride Tune Customization)
CHAIN	7/8 speed 154L
CRANK	3pc, 165mm crank arm
REAR DERAILLEUR	Shimano Altus RD-M310 8 Speed
SHIFTER	Shimano 8 Speed Trigger SL-M315-8R
CASSETTE	12-32T / 8 Speed Shimano CS HG200-8
PEDALS	9/16" Composite Platform
CLASS	Class 2 EBike
FORK	Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
SENSORS	Double Sided Bottom Bracket Torque Sensor
LIGHTS	Front and Rear Lights Integrated w/ Turn Signals
FRAME	Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
FRAME STYLE	Step-Through
SADDLE	Aventon Saddle w/ grab handle by Selle Royal
SEATPOST	Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
HANDLEBARS	BMX Style Aluminum 31.8mm, 720mm
SEAT CLAMP	34.9mm
GRIPS	Aventon Ergonomic Comfort lock on grips
FENDERS	Included
REAR RACK	Included
REAR RACK WEIGHT LIMIT	64 kg



• 32 kph top speed
• 97 km maximum range
• 750W hub drive motor (80 Nm torque)
• 36V 20Ah battery
• 200 kg maximum capacity load
• Tektro HD-E3520 hydraulic disc brakes
• Aventon BC147 display
• New Aventon Control Unit
• 4G and GPS connectivity
• Suspension seatpost
• Storage bag with lock
• Footboards
• Front suspension
• Adjustable quill stem
• BMX-style handlebars
• Remote lock and geofencing
• Passcode and keyless battery
• Aventon LH Handlebar Mounted throttle
• Double Sided Bottom Bracket Torque Sensor

TECHNICAL OVERVIEW

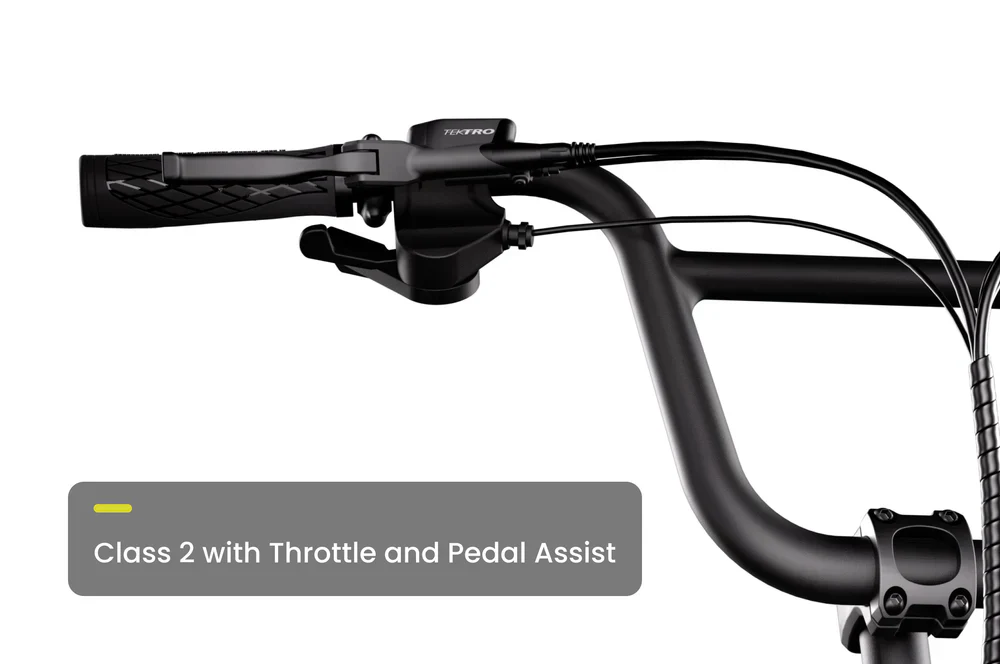

The Abound LR comes pre-configured as a Class II e-bike, offering both pedal assist and throttle functionality. For areas that only permit Class I e-bikes or where throttles are restricted, the throttle can be unplugged and removed, allowing the bike to operate in compliance. Aventon e-bikes are designed to meet the IPX6 water resistance standard, meaning they can withstand high-pressure water jets from any direction. This makes the Abound LR suitable for riding in heavy rain or through puddles and wet conditions. However, IPX6 does not mean the bike is fully waterproof—submerging the bike in water is not recommended. Additionally, do not clean your e-bike with a pressure washer, as the intense water pressure can damage electrical components. Maximum range based on PAS 1, flat terrain, and a rider weighing 72 kg.

Sizing Guide

Aventon Abound LR Dimensions
Frame Size	One Size
Height	150cm - 198cm (4'11"-6'3")
Top Tube Length	610mm
Reach	420mm
Head Tube Length	210mm
Head Tube Angle	69°
Wheelbase	1332mm
Seat Tube Length	380mm
Bottom Bracket Drop	30mm
Rear Chainstay Length	660mm
Front Wheel Center	673mm
Stack Height	521mm
Fork Length	394.5mm
Fork Offset	38mm
Trail	63mm
Wheel Size	50 cm



Aventon Abound LR: The Smarter Way to Cargo

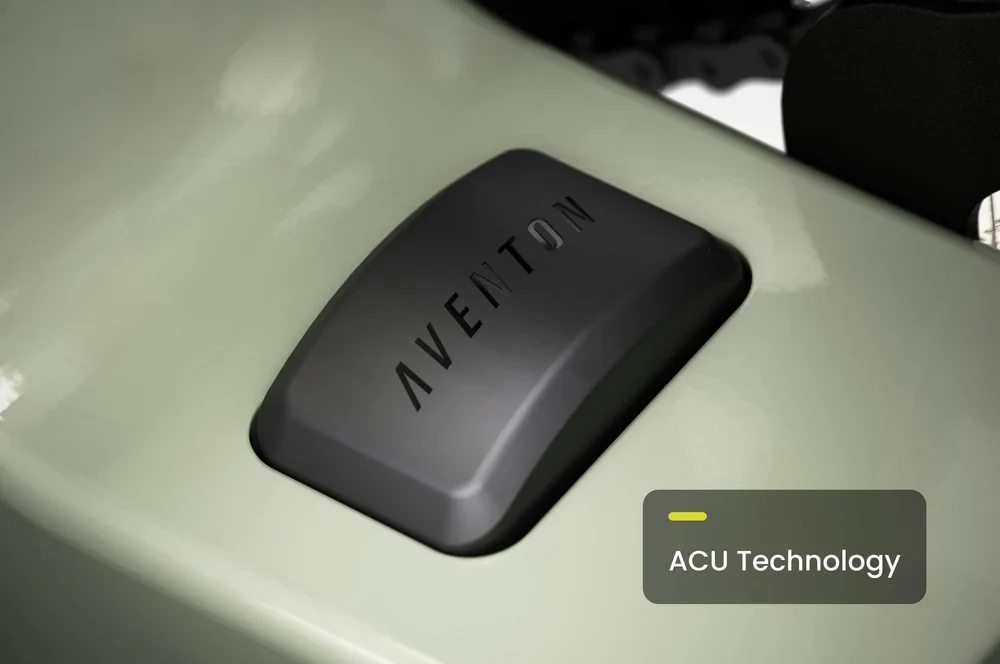

New Aventon Control Unit

The Aventon Control Unit (ACU) keeps your Abound LR secure and connected with Remote Lock, Geofencing, Passcode protection, and more.

Remote Lock & Geofence

With smart remote locking via the Aventon app and Geofencing to set allowed zones, you’re always in total control of your ride.

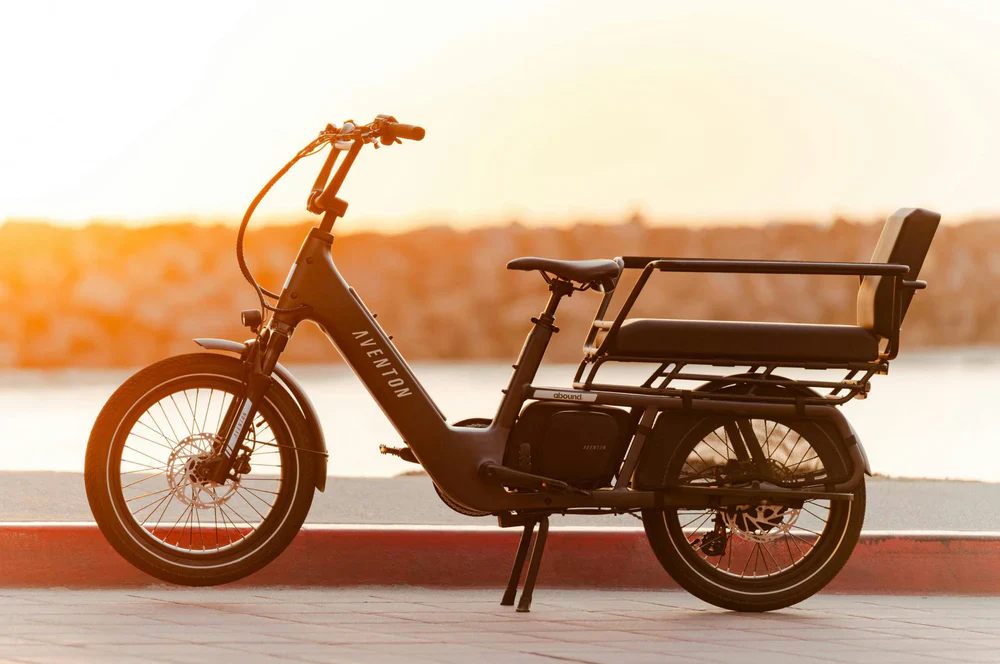

Longer Rear Rack

An extended rear rack provides more space for carrying cargo or accommodating passengers, so you can enjoy more versatile rides.

Suspension Seatpost

The Abound LR comes with a suspension seatpost, which lets you tailor impact absorption for a smoother riding experience.

Storage Bag with Lock

The Abound LR features a lockable storage bag that secures your valuables with a customisable three-digit combo password.

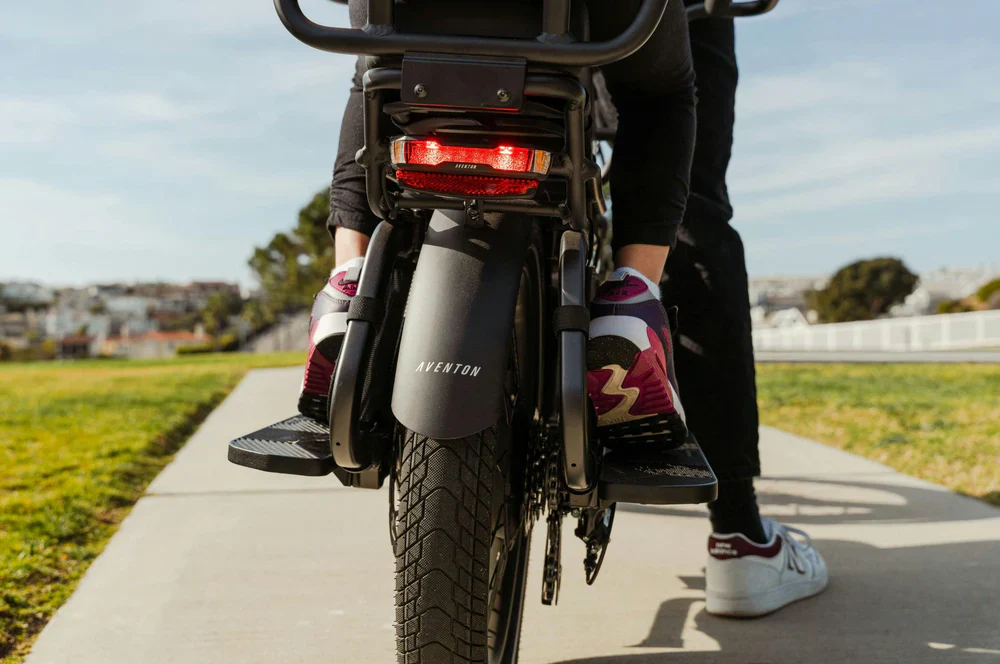

Footboards

Give your passengers a secure and comfortable ride with designated footrests that keep them stable and out of harm's way.

E-Lock Kickstand

Activate the kickstand lock instantly from your display or the Aventon app, and protect your Abound LR with an alarm system that triggers audio and visual alerts.

Keyless Battery

Set your passcode for added security and enjoy the convenience of a keyless battery - no more keys, just hop on and go.

New Side Display

Aventon’s new side display offers simple, accessible controls and features a USB-C port to charge your phone on the go.

Adjustable Stem & BMX-Style Handlebars

The Abound LR's adjustable quill stem and BMX-style handlebars offer a customisable fit and confident control for both riding and carrying cargo.
