Powered by a 500W motor capable of reaching 864W peak power and 60Nm of torque, the Level 3 delivers speeds of up to 45 kph and offers a range of up to 112 kilometres on a single charge. With Aventon’s latest Ride Tune software, you can also fine-tune performance settings to match your riding preferences.
The ACU’s smart features let you remotely lock the bike via the Aventon app, set up Geofencing alerts, and monitor your bike’s status in real time. Added security measures include a six-input passcode system, an automatic rear wheel lock, and the convenience of a Keyless Battery, eliminating the need for traditional keys.

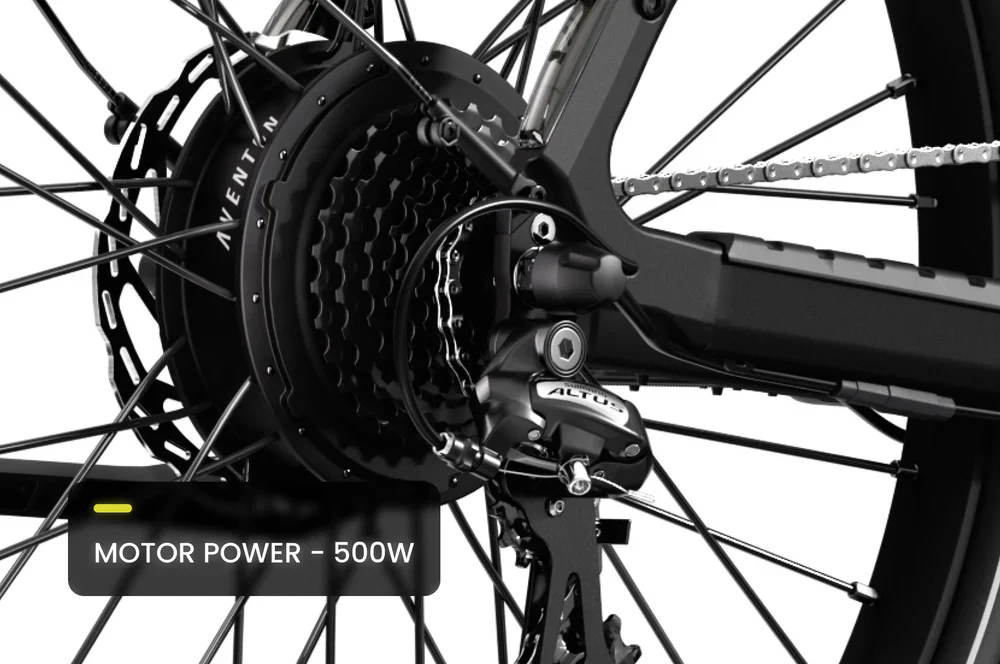

In terms of ride experience, the Level 3 retains the solid 500W rear hub motor of its predecessor but surpasses it in both peak power and battery capacity, thanks to a larger 733Wh battery and improved power management. Compared to the Level 2’s 97-kilometre range, the Level 3 offers up to 16 more kilometres per charge.
Designed for both comfort and utility, it includes pre-installed fenders and a sturdy rear rack for carrying everyday items. Whether you’re commuting through the city or heading out on a weekend ride, the Aventon Level 3 is built to handle it all — delivering longer range, smarter features, and reliable power in a ready-to-ride package.
Features
- 6061 Aluminium frame
- Aventon suspension fork
- Kenda Kwick Seven-5 Sport tyres
- Aventon BC280 display
- Removable Internal Lithium-ion battery
- Double Sided Bottom Bracket Torque Sensor
- Integrated front and rear lights
- Magura AT-2 hydraulic disc brakes
- Shimano Altus rear derailleur
- Shimano 8 Speed Trigger shifter
- Aventon saddle
- Fenders and rear rack included
Specs
| AVENTON LEVEL 3 |
| TOP SPEED |
32 kph on Throttle
45 kph on Pedal Assist
|
MAX. RANGE
|
112 km |
| MOTOR |
864W (Peak) 500W (Sustained) Motor, 60Nm torque |
| THROTTLE |
Aventon LH Handlebar Mounted
|
| BATTERY |
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
|
| WEIGHT |
30 kg |
| RIDER WEIGHT |
136 kg |
RIDER HEIGHT
|
5'3" - 6'4" (160 - 195 cm)
|
| TYRES |
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 tyres |
| BRAKES |
Magura AT-2 Hydraulic disc brakes, front and rear |
| WATER RESISTANCE |
IPX6
|
| CHARGER |
36V Output: 42V/ 4A, 5 hours charging time |
| CLASS |
Class 2 Ebike |
| FRAME |
6061 Aluminum, Gravity Cast Front Triangle
|
| CHAIN |
7/8 speed 120L |
| FORK |
Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
|
| REAR SPACING |
142mm
|
| FORK SPACING |
110mm
|
| FRONT WHEEL |
27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
|
| REAR WHEEL |
27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
|
| DISPLAY |
Aventon BC280
|
| BATTERY WEIGHT |
3.9 KG |
| SENSORS |
Double Sided Bottom Bracket Torque Sensor
|
| LIGHTS |
Front and rear lights integrated
|
| REAR DERAILLEUR |
Shimano Altus RD-M310
|
| SHIFTER |
Shimano 8 Speed Trigger SL-M315-8R
|
| CASSETTE |
12-32T / 8 Speed Shimano CS HG200-8
|
| CHAINRING |
48T
|
| CRANKSET |
3pc, 170mm crank arm
|
| BOTTOM BRACKET |
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
|
| PEDALS |
9/16" Composite Platform
|
| SADDLE |
Aventon Saddle
|
| SEATPOST |
30.9mm Aventon Suspension Seatpost with 50mm travel
|
| HANDLEBARS |
Aluminum 31.8mm, 680mm
|
| GRIPS |
Aventon Lock on grips
|
| HEADSET |
Sealed Bearing Headset
|
| FENDERS |
Included
|
| REAR RACK |
Included (27 KG weight limit) |
Geometry
|
Aventon Level 3 Step Over Dimensions
|
|
Frame Size
|
Regular
|
Large
|
|
Height
|
160cm - 175 cm
|
175cm - 195 cm
|
|
Top Tube Length
|
605mm
|
635mm
|
|
Reach
|
420mm
|
450mm
|
|
Head Tube Length
|
140mm
|
140mm
|
|
Standover Height
|
687mm
|
687mm
|
|
Wheelbase
|
1150mm
|
1150mm
|
|
Seat Tube Length
|
440mm
|
500mm
|
|
Bottom Bracket Drop
|
50mm
|
50mm
|
|
Head Tube Length
|
140mm
|
140mm
|
|
Head Tube Angle
|
70°
|
70°
|
|
Seat Tube Angle
|
74°
|
74°
|
|
Rear Chainstay Length
|
480mm
|
480mm
|
|
Front Wheel Centre
|
675mm
|
705mm
|
|
Stack Height
|
620mm
|
618mm
|
|
Fork Length
|
480mm
|
480mm
|
|
Fork Offset
|
43mm
|
43mm
|
|
Trail
|
81mm
|
81mm
|
|
Wheel Size in Inches
|
27.5"
|
27.5"
|
Aventon Level.3: Smarter, Stronger, Built for More
Advanced Technology, Enhanced Security

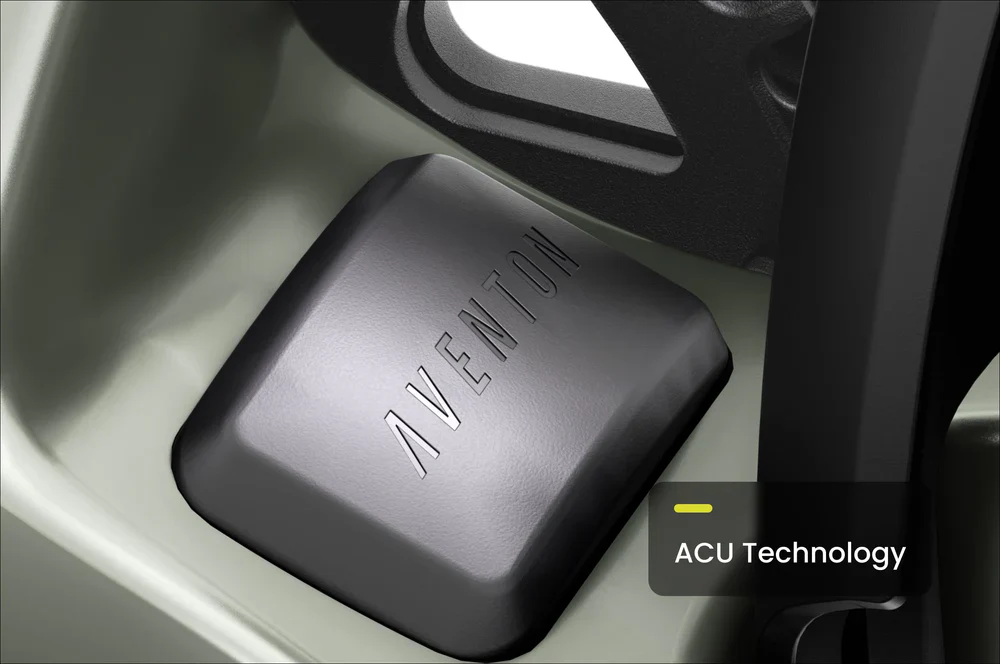

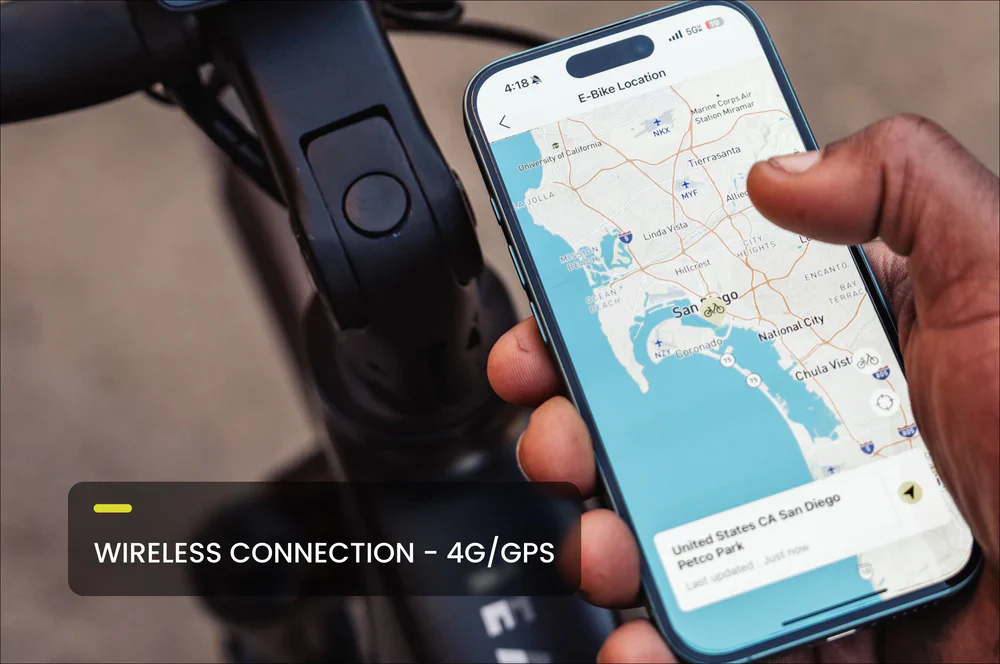

The new Aventon Control Unit (ACU) keeps your bike secure and connected with Remote Lock, Geofencing, Passcode protection, GPS tracking, 4G connection, and cloud sync.

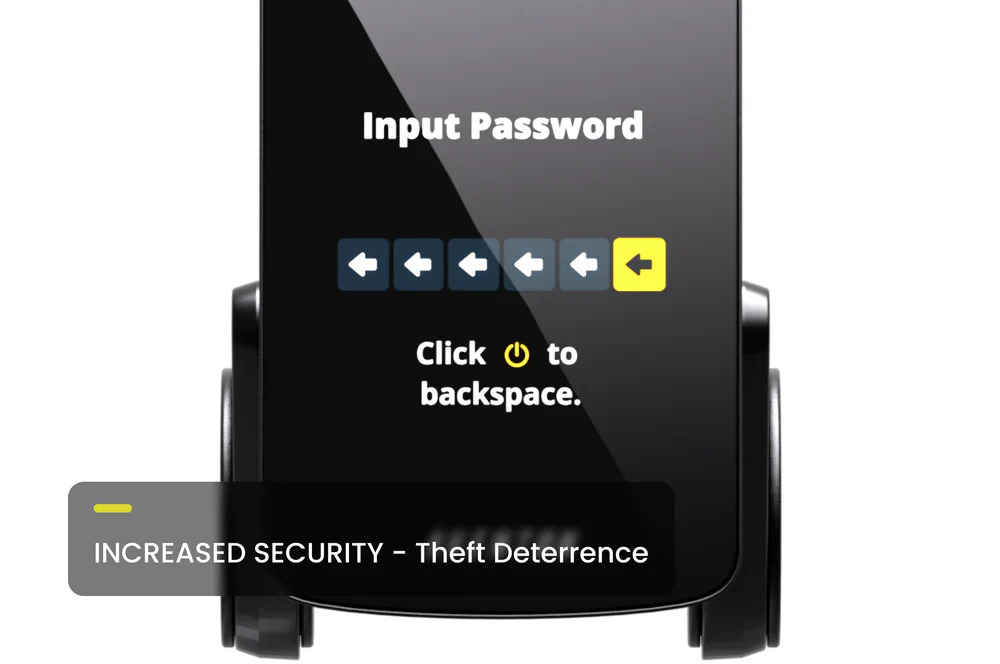

Startup Password and Keyless Battery
Create a custom passcode for extra security, and with the new Keyless Battery, you can unlock and ride without needing a key.
Remote Lock and Geofencing
With Remote Lock and Geofencing in the Aventon app, you can immobilise your bike and set custom ride boundaries for complete control.
Electronic Rear Wheel Lock
Activate the rear wheel lock to prevent it from rotating for an extra layer of security when you have to leave your bike unattended.
Suspension Seatpost
The suspension seatpost with adjustable preload lets you adjust your preferred level of impact absorption so you can enjoy smoother rides.
Ride Tune
Ride Tune in the Aventon App lets you personalise your riding style and keeps you in sync with your Level.3 for optimal performance.
Over The Air Updates
Get intelligent over-the-air updates through the Aventon app to keep your bike performing at its best without the need for plugs or shop visits.

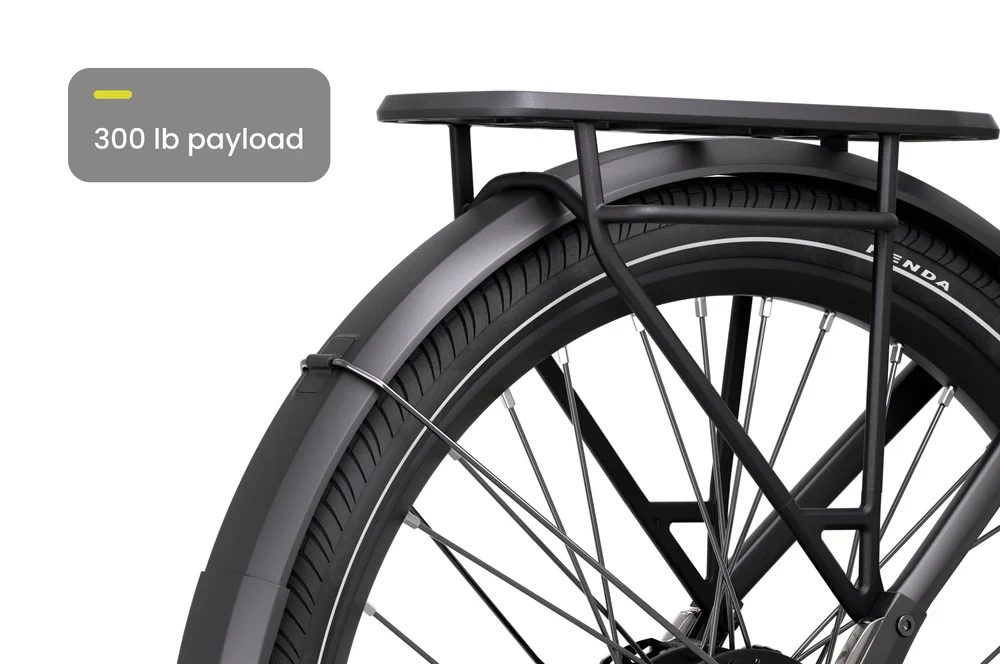

Integrated Rack and Fenders
Your Level.3 is ready to ride, with pre-installed fenders that shield you from the elements and a sturdy rear rack for carrying essentials.

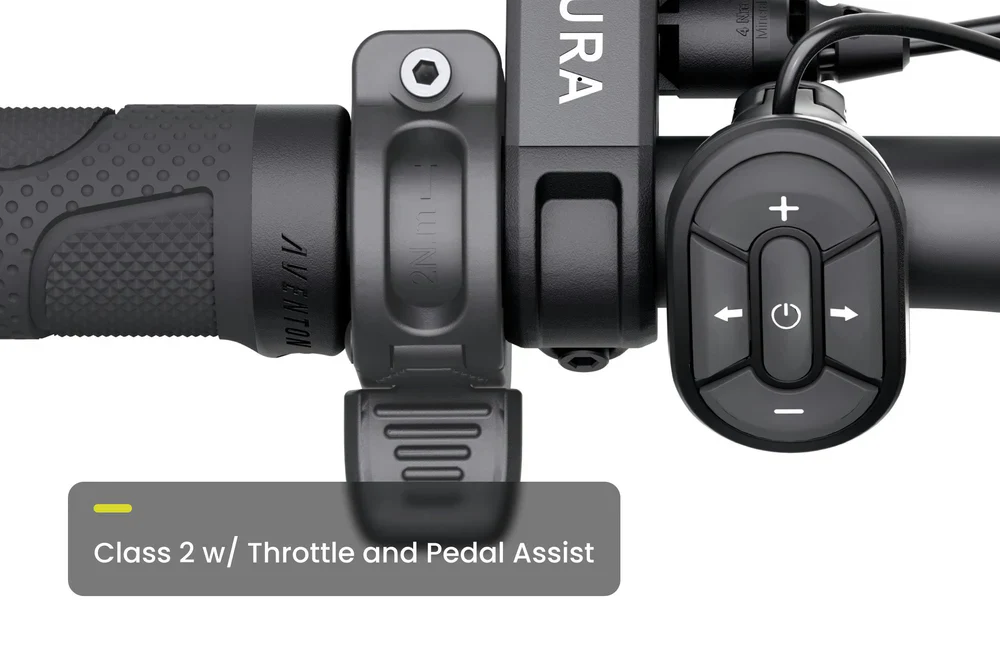

Operates on Pedal Assist and Throttle
Five levels of pedal assist let you control how much support you get, while the throttle can propel you up to 32 KPH for effortless riding when you need it.
